N54 BMW Water Injection Kit

Burger Motorsports

  • $452.00
    Unit price per
Shipping calculated at checkout.


Make tremendous amounts of power on pump gas!

Water/Methanol/Alcohol injection commonly referred to as WMI allow you to make tremendous amounts of power on pump gas. The effect is similar to running 100 octane race gas or E85 fuel all the time with the additional cooling benefits allowing for more power than you can make on race gas or E85 alone.

The key to a safe and effective WMI setup is tuning integration. The N54 WMI kit integrates to the JB4 tuning system allowing for precise mapping based on boost, throttle position, engine speed, intake temperature, advance, gear, and other data elements available to the JB4 through its CANbus system. In addition a pump flow signal is fed back to the JB4 allowing for a safe and smooth progressive boost mapping. If the tank runs empty or flow drops for any reason the JB4 will safely back down performance to avoid detonation. Boost is held low until WMI is properly flowing to avoid tip in knock common with non-integrated WMI setups. In addition WMI can be activated or disabled right from the JB4 Mobile app , will automatically disengage during traction control or safety map situations, and WMI flow data can be displayed via your JB4 Mobile logging device.

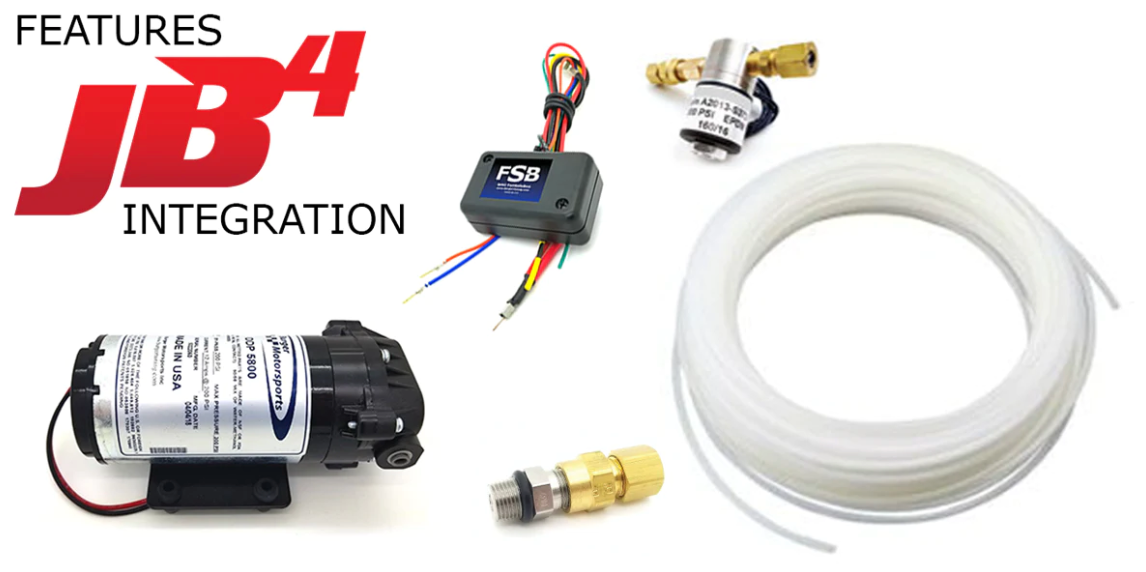

The BMS WMI kit includes a high quality Aquatec WMI pump made to our specifications, high speed solenoid with leak-free compression fittings, a WMI filter, and all required wiring and mounting hardware.

You can select from the lower cost 1 gallon clear tank for a custom mount, or opt for our 2G integrated tank which includes a mount for the pump simplifying the install process.

For stock turbo applications we suggest a single BM10 nozzle, while for hybrid and larger turbos dual BM7 nozzles.





WMI TANKS

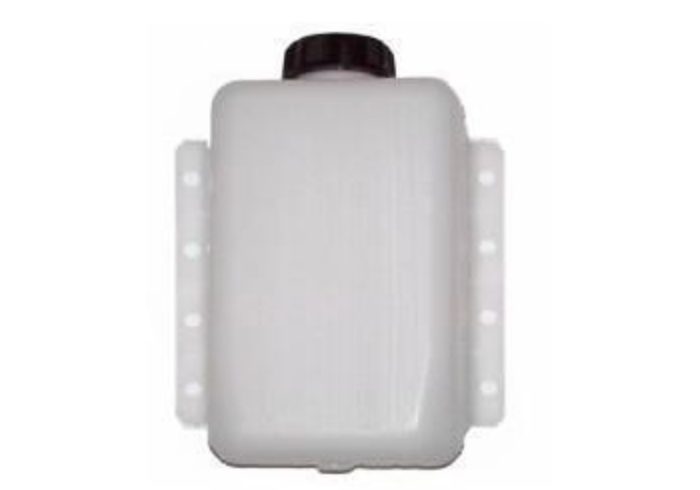

1 gallon universal tank: The least expensive option this tank is compact and flexible allowing for a wide range of mounting on any flat vertical surface in the trunk. The tank is clear to allow visually checking the fluid level.

Comes with standard 2 way vented black plastic cap/lid.
Upgraded billet cap/lid with 1-way check valve available in the drop-down menu when ordering.

Tank dimensions: L 11" x W 9" x H 4.5"
For trunk mount applications.


1.25 GALLON HEAVY-DUTY UNIVERSAL TANK: The Burger Motorsports 1.25 gallon heavy-duty tank is compact and flexible allowing for a wide range of mounting on any flat vertical surface in the trunk.

This tank is thicker and stronger than our basic 1-gallon WMI tank. This tank features an easy fill filler nozzle, an anti-starvation reservoir with a pre-threaded bung for the included 90º compression pump feed fitting, a spill-catcher reservoir around the filler cap, a 2-way vented black plastic cap, and is translucent to allow visually checking the fluid level.

Comes with a standard 2 way vented black plastic cap/lid. Upgraded billet cap/lid with 1-way check valve available in the drop-down menu when ordering.

Tank dimensions: L 11" x W 4.5 x H 9"

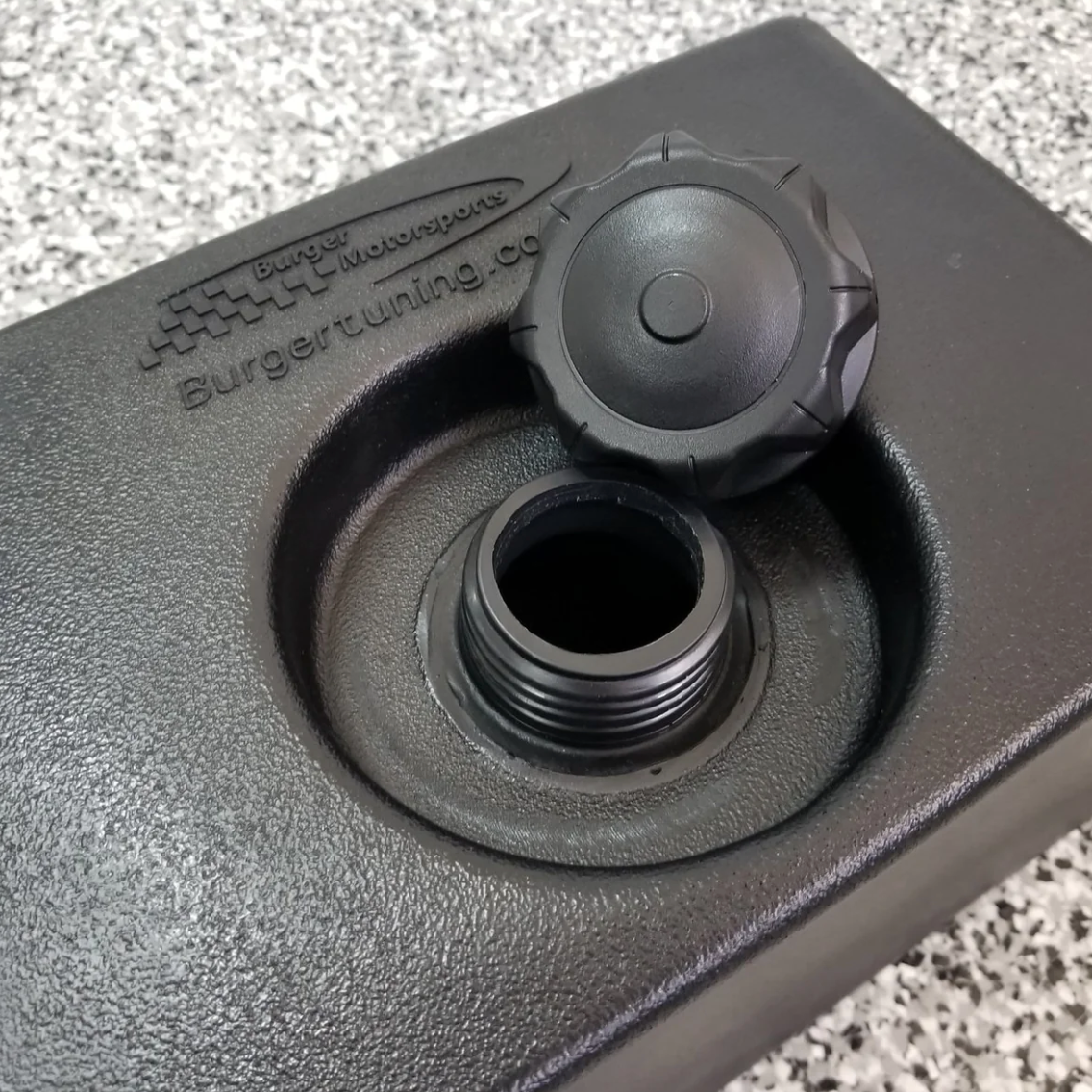

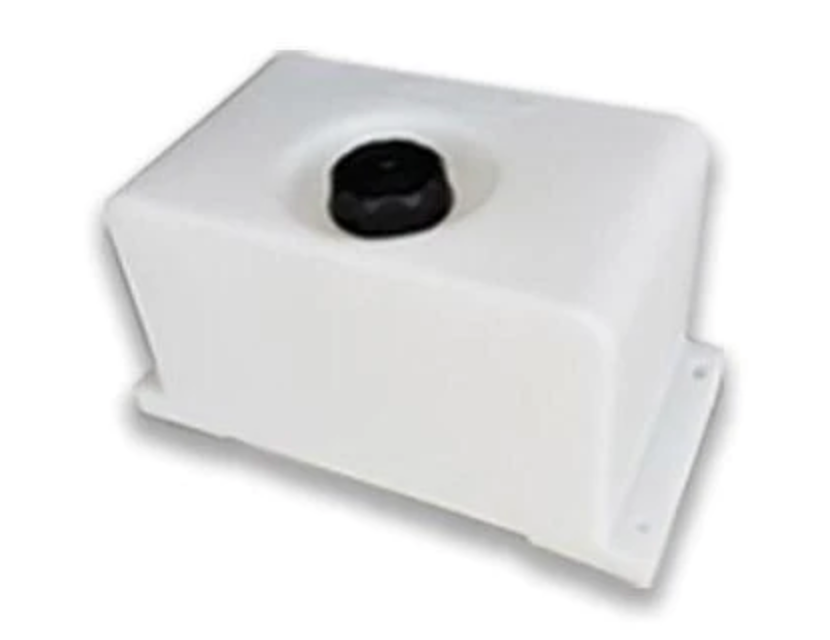

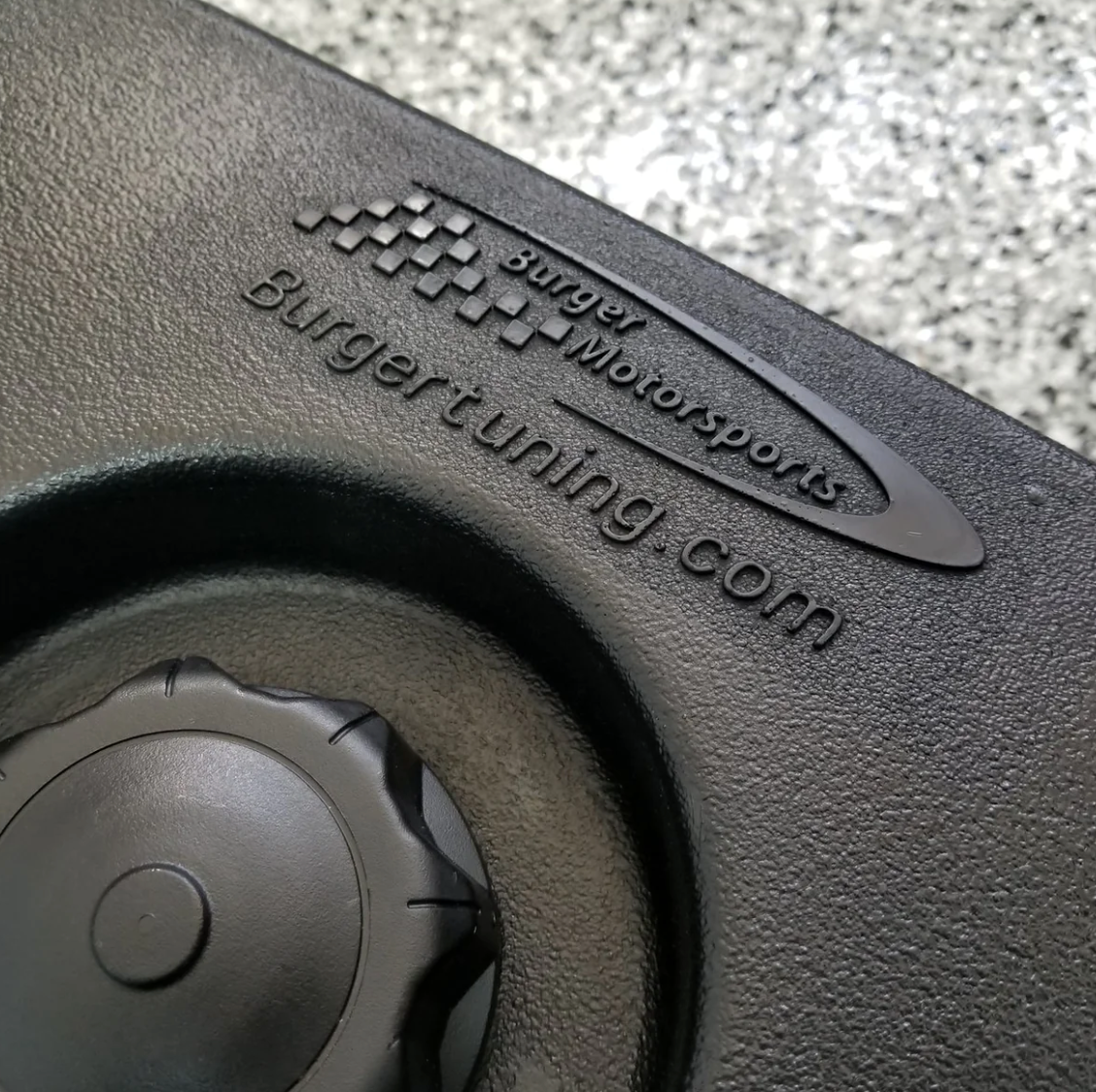

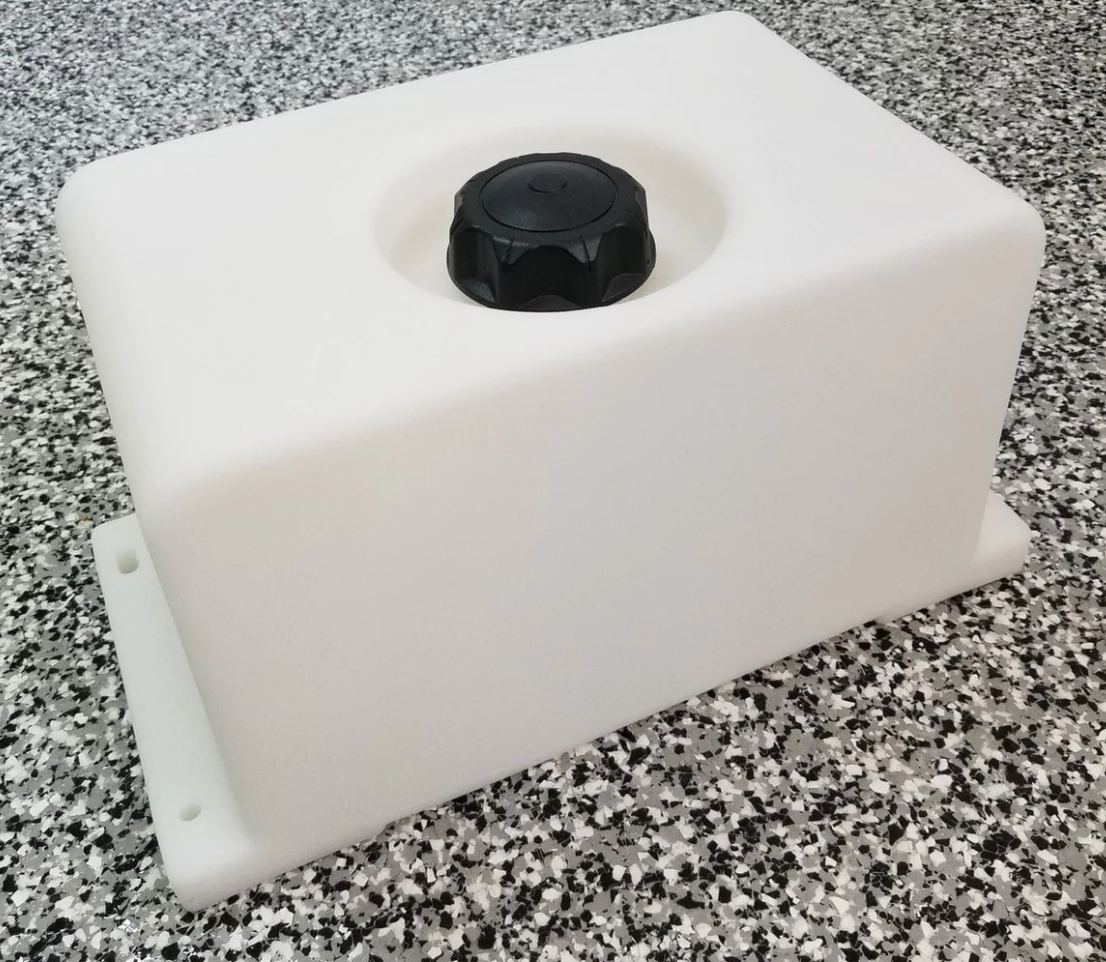

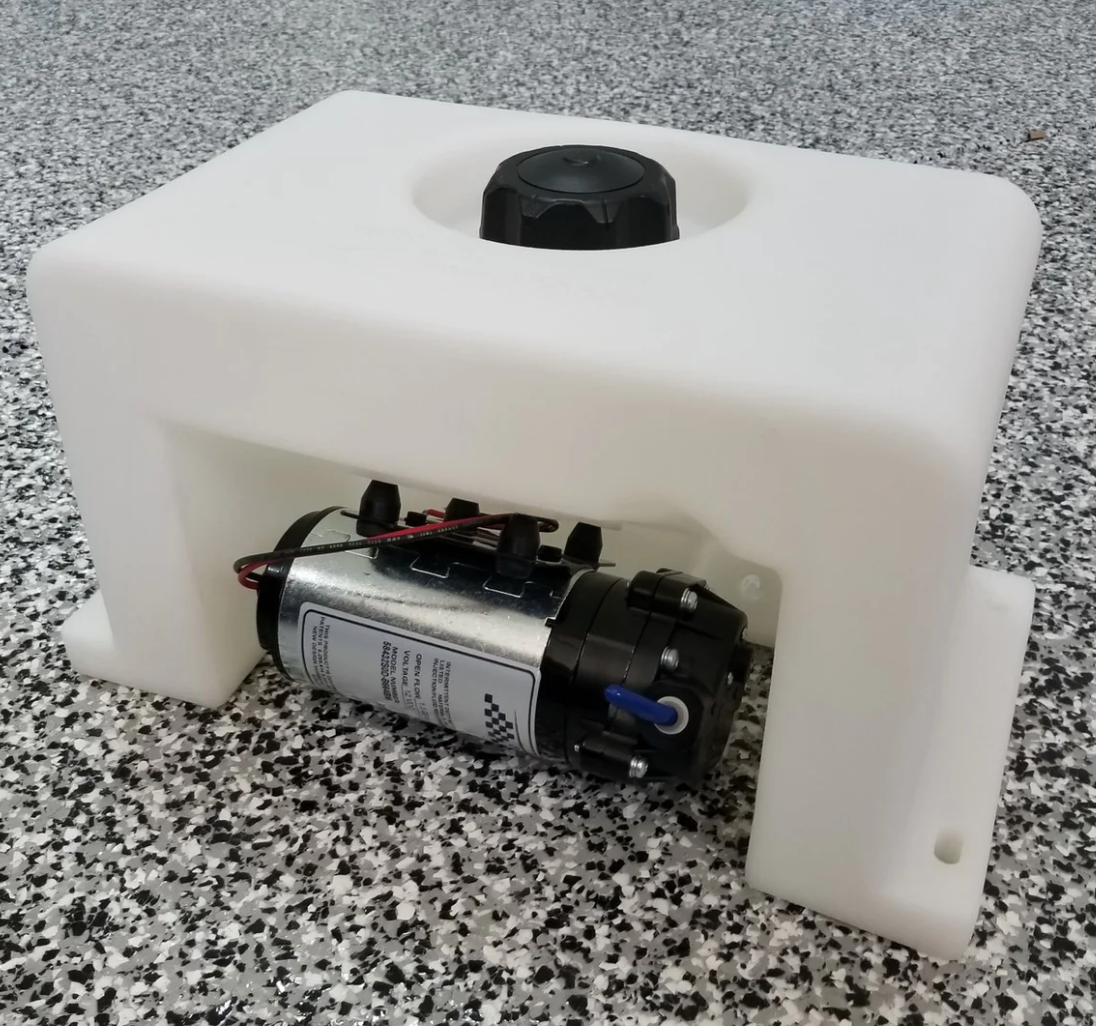

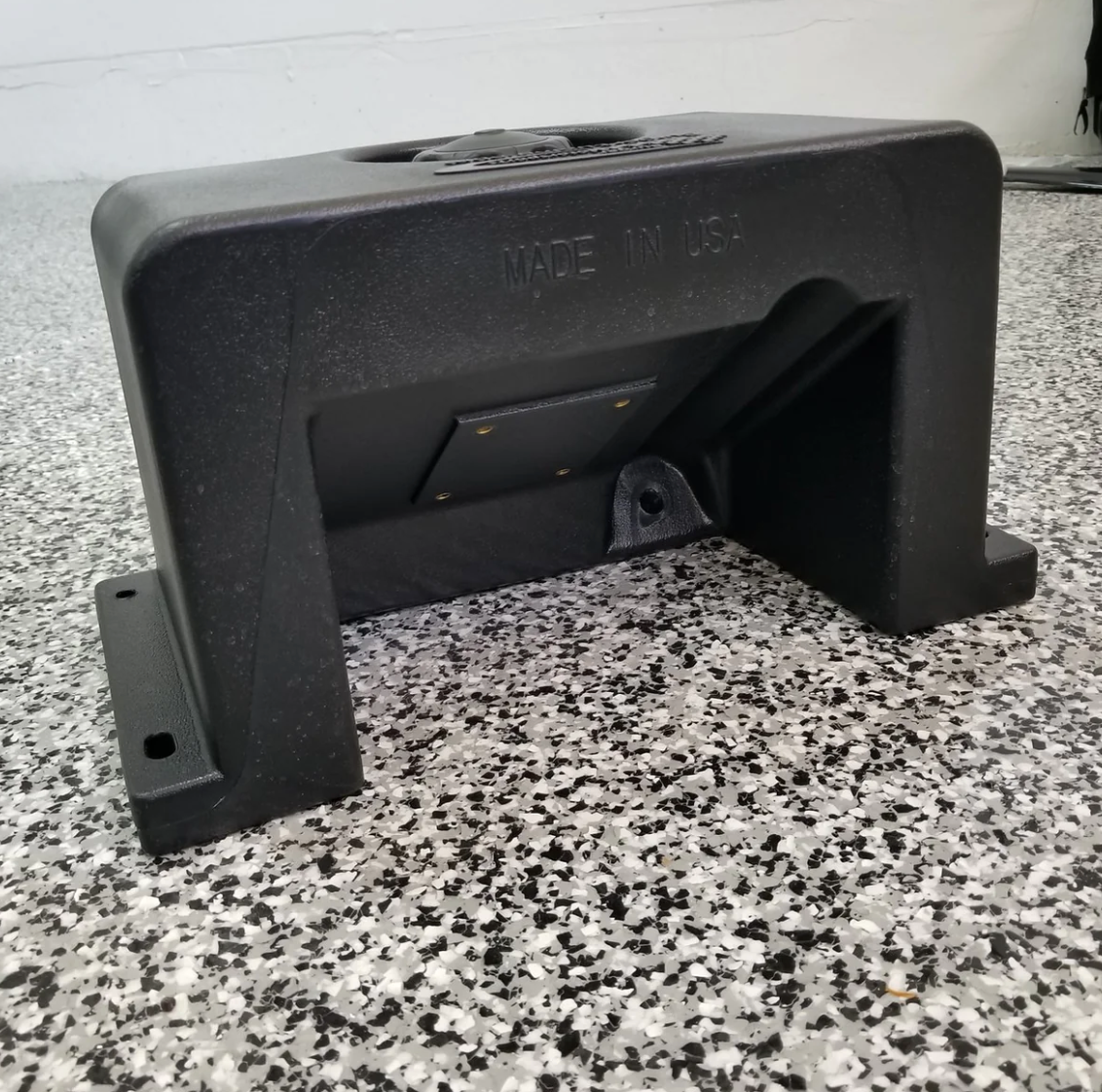

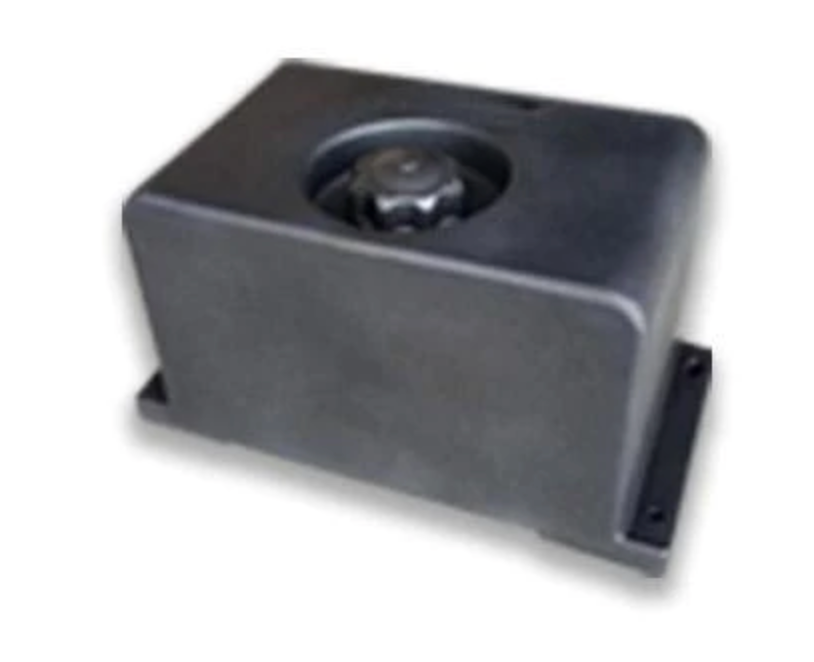

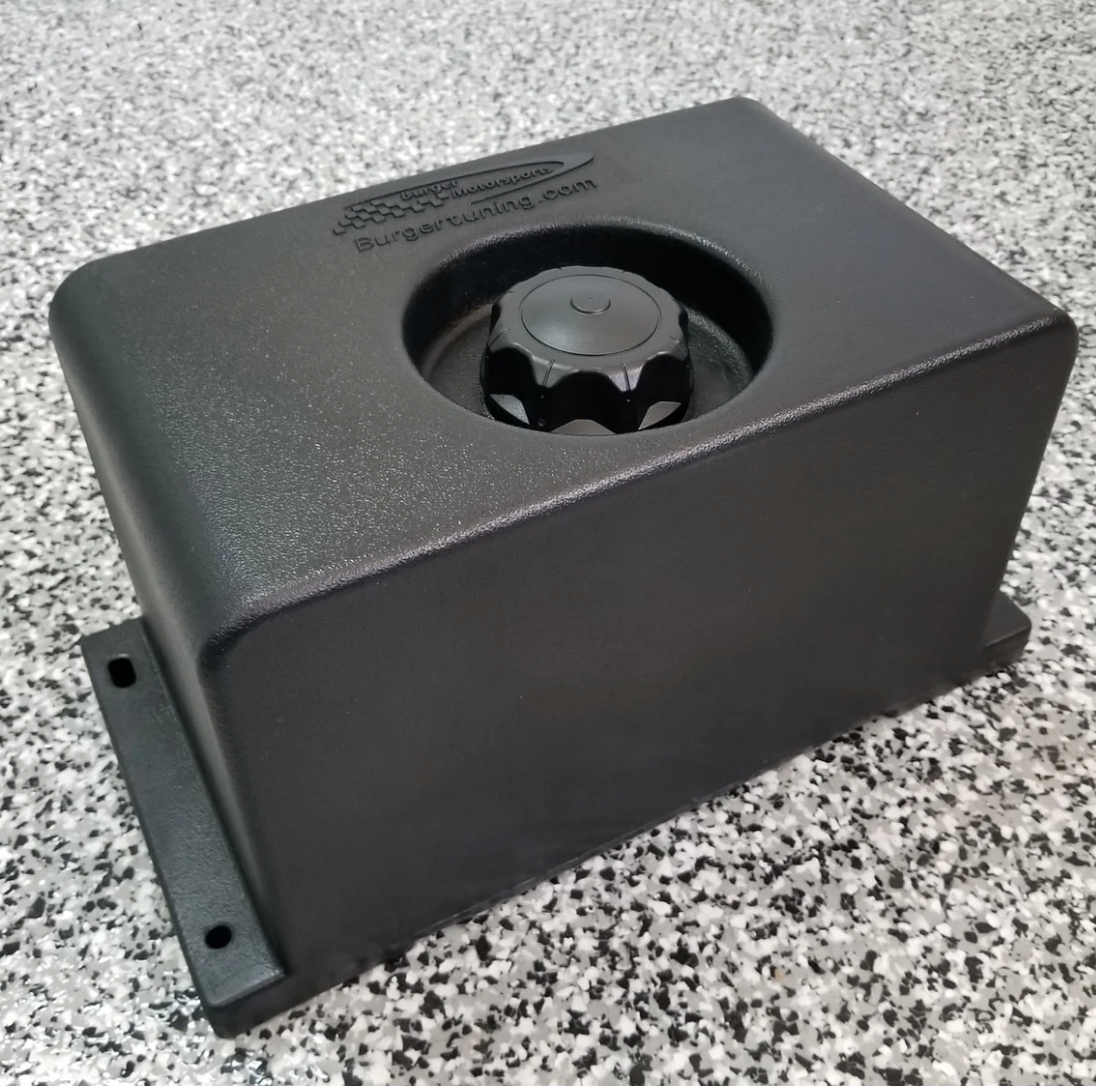

2 GALLON UNIVERSAL LOW PROFILE TANK:

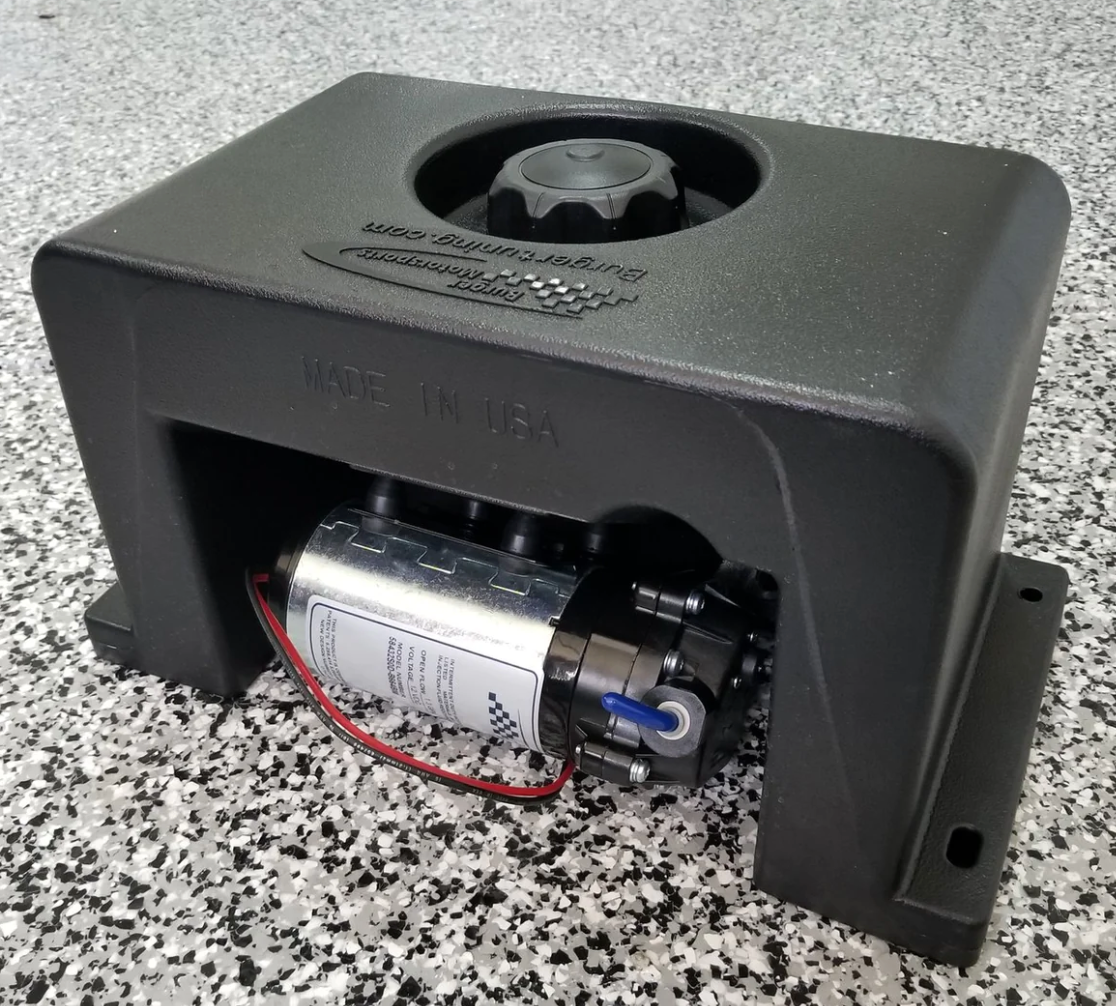

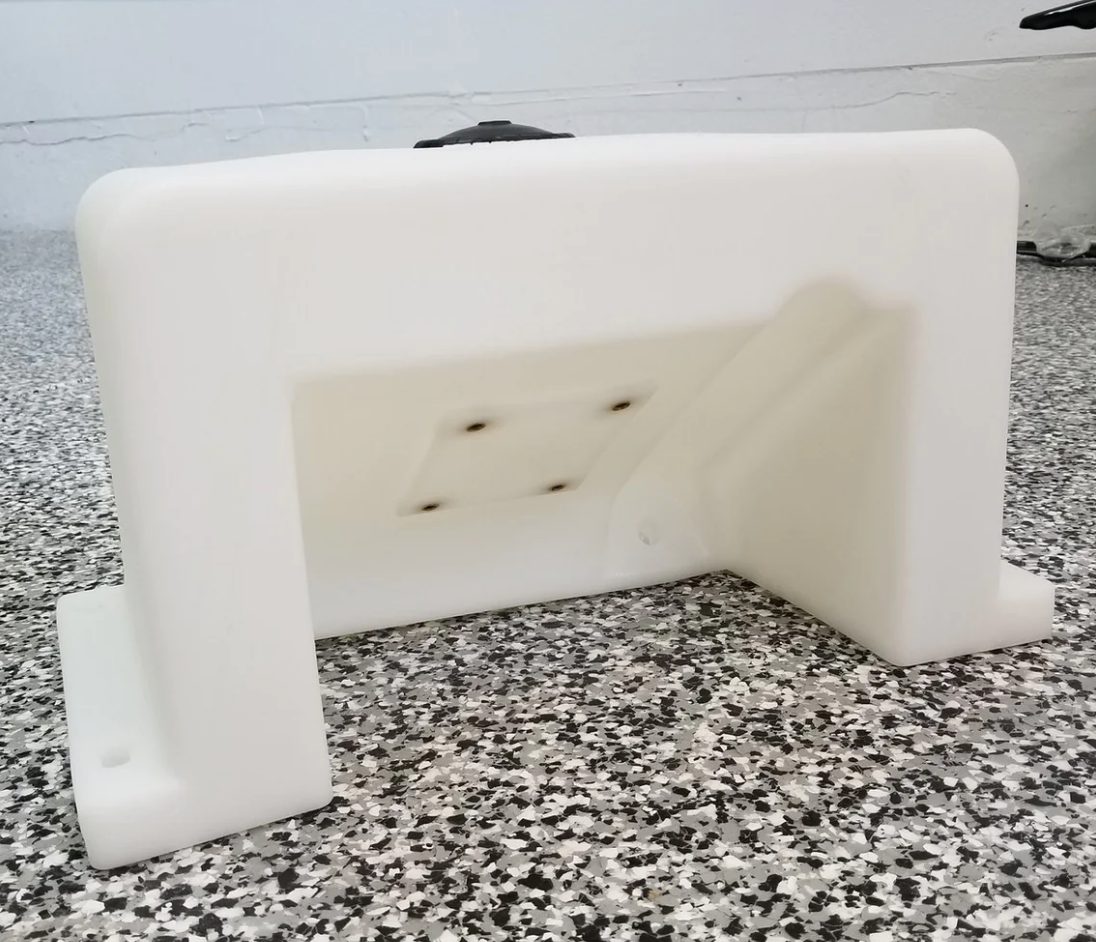

With our 2-gallon universal tank the WMI pump mounts directly to the tank for the ultimate easy to install tank. This tank is compact allowing for a wide range of mounting on any horizontal surface in the trunk. Offered in black and in clear to allow visually checking the fluid level. Works with all DDP 5800 pumps. Made in the USA.

Comes with a standard 2 way vented black plastic cap/lid.
Upgraded billet cap/lid with 1-way check valve available in the drop-down menu when ordering.

Tank dimensions: L 15.5" x W 8" x H 8.25"
For trunk-mount applications.

Burger Motorsports water methanol injection 2 gallon trunk tank with cap watermethanol tank cheap mix

Burger Motorsports water methanol injection 2 gallon trunk tank with cap watermethanol tank cheap mix

watermethanol tank methanol water injection tank with cap

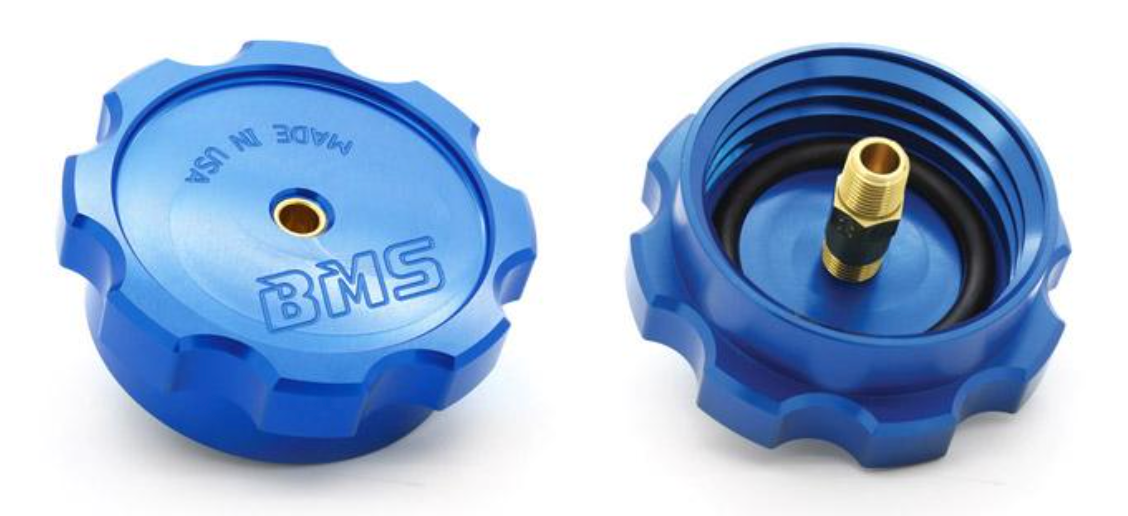

UPGRADED BILLET TANK CAP

Upgraded Billet WMI tank cap w/safety check valve
This high-quality custom billet WMI cap includes an integrated check valve to let air in and prevent dangerous WMI vapor/fumes from getting out! Made in the USA.

Applications
• 1 gallon tank
• 1.25 Gallon hevy-duty tank
• 2 gallon universal tank
• 2 & 3 gallon stealth tank
